Product Range
|
|

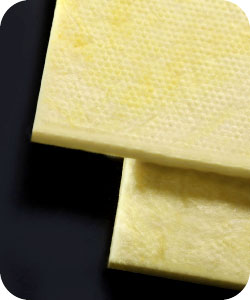

Ecowool Board
 |
|
Ecowool Board is specifically designed to provide fire resistance, thermal and acoustical insulation properties when installed in glass, metal or stone spandrel systems or in fabricated metal pans. It combines cost efficiency with the highest standard of insulation performance. Made from nearly 80% recycled glass and locally sourced raw materials, ECOWOOL range of glass mineral wool is perfectly in tune with sustainability and environmental concerns.
|
- APPLICATIONS
Custom Curtain Wall Construction
- Exterior curtain wall cavities – exceptionally well suited to curtain wall construction in terms of both installation and performance
Standard Metal Panel Construction
- Field-installed between an interior liner and the outer metal panel using boards that are plain or faced with a factory-applied vapour retarder
New and Retrofit Construction
- Provides thermal and acoustical insulating values for exterior curtain wall cavities, parking structures, mechanical rooms, theaters, casinos and other construction applications
General Construction
- A versatile insulation, it is also an ideal thermal barrier for masonry or concrete structures such as shopping centers, banks and other types of low-rise buildings. In masonry applications, the glass mineral wool boards faced with an FSK vapour retarder are installed between ‘Z’ or hat channels applied directly to the masonry surface. Normally, gypsum board and/or architectural panels are then used as interior surfaces
- ADVANTAGES
- Optimal fibre diameter
- Better fibre network
- Less dusty and less itchy
- Low ‘K’ factor
- Excellent Acoustical Properties
- Non-corrosive
- Do not encourage mould growth
- THERMAL PERFORMANCE
Test according to ASTM C518 at 23°C and 20°C mean temperature. Thermal conductivity as low as 0.0309W/mK
- ACOUSTICAL PERFORMANCE
Type ‘A’ Mounting, tested in accordance with ASTM C 423
- FIRE PROPERTIES
Tested in accordance and comply with (plain/unfaced):
- B.S. 476: Part 4 Non-combustibility test for materials
- B.S. 476: Part 6 Fire propagation
- B.S. 476: Part 7 Surface spread of flame
- ASTM E84
- NFPA 90A and NFPA 90B
- Fire Hazard classification 25/50
- Bomba Class ‘O’
- AS 1530: Part 3-1982
- PRODUCT RANGE
| Thickness (mm) | 25 | 50 |
| K-Value (m2K/W) | 0.0325 | 0.0325 |
| R-Value (W/mK) | 0.75 | 1.54 |
|
| Thickness (mm) | 25 | 50 |
| K-Value (m2K/W) |
0.0309 |
0.0309 |
| R-Value (W/mK) |
0.81 |
1.62 |
|
| Thickness (mm) | 25 | 50 |
| K-Value (m2K/W) |
0.0309 |
0.0309 |
| R-Value (W/mK) |
0.81 |
1.62 |
|
| Thickness (mm) | 25 | 50 |
| K-Value (m2K/W) |
0.0309 |
0.0309 |
| R-Value (W/mK) |
0.81 |
1.62 |
|
| Thickness (mm) | 25 | 50 |
| K-Value (m2K/W) |
0.0309 |
0.0309 |
| R-Value (W/mK) |
0.81 |
1.62 |
Note: Please contact PGF Insulation sales representative for indicative density of the products above
- AVAILABLE FORMS
Unfaced or Plain
- Unfaced boards are designed for thermal and acoustical insulation applications
Faced with Foil-Scrim-Board (FSK)
- Faced boards can be used where vapour barrier is needed. Available either in single sided or double sided FSK Foil
|
|
